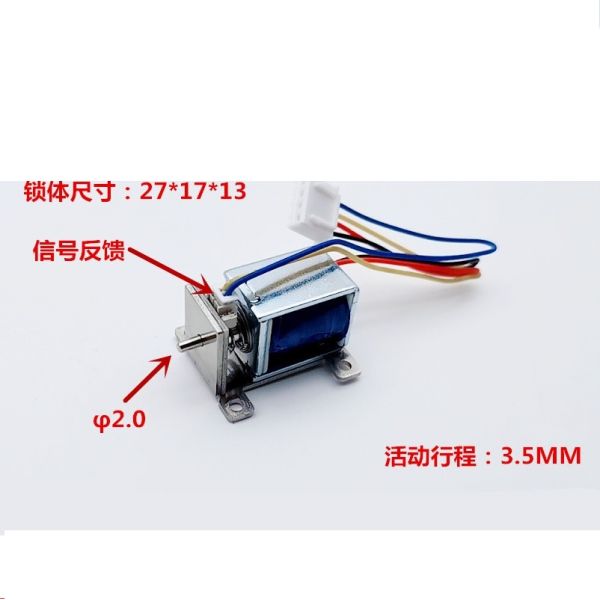

Miniature Electromagnetic Lock DC5V DC12V With Signal Detection Function

Miniature shared charging treasure electromagnetic lock with signal detection function medical instrument solenoid manuf

Brand: Dason electromagnetic

Product Name: electromagnetic lock (for shared charging treasure)

Product model: sm0520-xh-01

Product voltage: dc5 / 12V, current: 5A / 2A respectively

Product specification: 27mm long, 24mm wide and 17mm high

Product features: the electric lock is powered on instantly, so the power consumption is saved, and the use voltage of ordinary electric control lock is high. However, this lock has the advantages of simple structure, low use cost and convenient installation.

Service life: more than 500000 times under rated working conditions

The parameters of spot finished products are as follows:

Product model Voltage electric current trip suction Maximum single power on time

SM0520-XH-5V 5V 5A 3.5MM 200g 2 seconds

SM0520-XH-12V 12V 2A 3.5MM 200g 2 seconds

Instructions for use and installation:

1. The red and black wires are the power lines of the electromagnetic lock, regardless of the positive and negative poles. The input voltage is DC5V and the current is 5A; The yellow blue line is the signal detection feedback line.

2. When the switch is powered on, the exposed length of the latch is 4.2mm, retracted by 3.5mm, the charging treasure is opened, and when it is not powered on, the latch extends 4.2mm by the internal spring force, and the charging treasure is locked.
